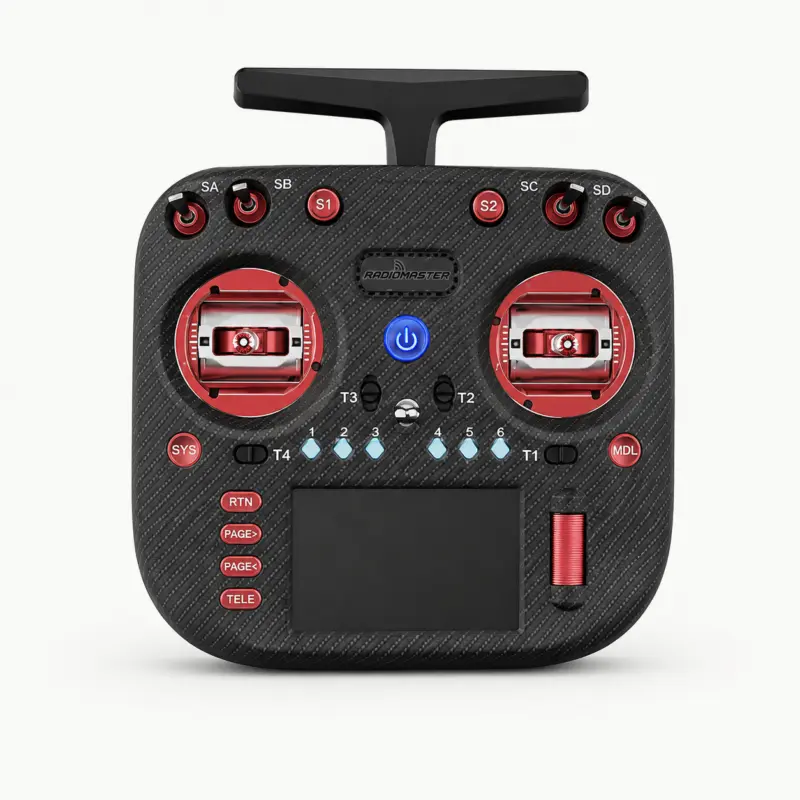

TX15 MAX ExpressLRS transmitter with AG02 CNC Hall gimbals, 3.5-inch 480 × 320 IPS touchscreen and USB-C. Input range 6.6–8.4 V DC. Receiver, regional RF version, control mode and battery selection require confirmation.
Component type
Development
Review status
Specification to confirm
Request a quotation
Sales confirms availability, price and lead time.
No online payment. Submit a purchase request for quotation.
Technical overview
Product information.
TX15 MAX ExpressLRS transmitter with AG02 CNC Hall gimbals, 3.5-inch 480 × 320 IPS touchscreen and USB-C. Input range 6.6–8.4 V DC. Receiver, regional RF version, control mode and battery selection require confirmation.
Key specifications
Protocol
ExpressLRS
Gimbals
AG02 CNC Hall sensor
Display
3.5-inch IPS touchscreen; 480 × 320
Supply
6.6–8.4 V DC
Size
178 × 168 × 81 mm
Weight
672 g without battery
Battery
Not included in the manufacturer reference package
Before ordering
Select regional RF version and confirm receiver compatibility.
Confirm control mode, colour and package. This is a development controller, not an AI toy core.
